Blauberg Turbo G Mixed Flow Fan - 150MM (6" Inch) | 330CFM | Thermostat | Speed Control

Blauberg Turbo G Mixed Flow Fan - 150MM (6" Inch) | 330CFM | Thermostat | Speed Control

  • $250.00
Tax included.


Description



The Blauberg Turbo G Mixed Flow Fan is the best ventilation solution for premises requiring permanent temperature control as greenhouses, orangeries, etc.

Complete with 4 metre wired thermo probe for accurate temperature readings.

Operating the fan speed controller and thermostat:

  • Set your desired grow room temperature on the thermostat (e.g. 20 degrees celsius)
  • Set the desired speed you wish the fan to run (e.g. medium speed)

When your grow room temperature drops below the set temperature on the thermostat (20 degrees celsius), the fan will operate at the selected speed (medium). When the temperature rises above the selected temperature, the fan will increase its speed to maximum until the temperature drops again to the desired level.

This means that when the area cools down, the fan will then also slow down reducing overcooling.





Features



These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings
  • Equipped with thermal overload protection with automatic restart
  • Automatic speed control depending on indoor temperature with thermostat





Specifications



Parameter Value
Phase, [˜] 1
Voltage, [V] 230
Frequency, [Hz] 50/60
Power, [W] (min) 42
Power, [W] (max) 50
Current, [A] (min) 0.19
Current, [A] (max) 0.22

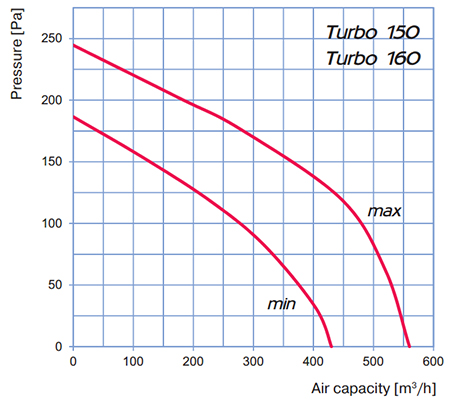

Maximum air capacity, [m³/h] (min) 430
Maximum air capacity, [m³/h] (max) 560
RPM, [min-¹] (min) 1940
RPM, [min-¹] (max) 2620
Sound pressure level at 3 m distance, [dBA] (min) 37
Sound pressure level at 3 m distance, [dBA] (max) 46
Max. operating temperature, [°C] 60
Ingress protection rating IP X4





Type Dimensions [mm] Weight
[kg]
D D1 B H L
Turbo 150 148 187 220 251 289 3.18
